Creating Your Uni

A Uni is comprised of multiple nodes that share a common data model. There is a separate page outlining how to model your data. On this page, we will address how to define and associate partners with the model and, ultimately, how to create the resources required of a Uni.

Registration File

The registration file is a JSON file used to define where to locate the schema and the nodes that are participating in a Uni. Optionally, the registration file can specify the location of an initial state file that is used to populate a newly created Uni with data.

Uni creators can either specify an initial static list of multiple nodes (ie static registration) or they can define a single node and invite additional users to create a node at a later point in time (ie dynamic registration).

Static Registration

If Uni creators know the parties that will comprise a Uni, they can statically define them in the registration file.

Sample static registration file
{
  "name": "test-inventory",
  "schema": "schema.json",
  "initState": "initial-state.json",
  "nodes": [
    {
      "name": "DistributionCenter",
      "userId": "user1@domain1.com",
      "region": "us-east-2"
    },
    {
      "name": "Retailer1",
      "userId": "user2@domain2.com",
      "region": "us-west-2"
    },
    {
      "name": "Retailer2",
      "userId": "user3@domain3.com",
      "region": "us-west-2"
    }
  ]
}

Each participant in the Uni will need to go through the registration process with the exact same schema and, if applicable, initState. The Uni will not be in a RUNNING state until all parties have gone through the registration process.

Dynamic Registration

If Uni creators are not sure of the parties in advance they can create a single node and add other users at a later point.

Sample dynamic registration file
{
  "name": "test-inventory",
  "schema": "schema.json",
  "initState": "initial-state.json",
  "nodes": [
    {
      "name": "DistributionCenter",
      "userId": "user1@domain1.com",
      "region": "us-east-2"
    }
  ]
}

In the sample file, there is only a single node - DistributionCenter. To add additional nodes, the Vendia Share manager of the DistributionCenter must invite additional parties. The invitation can be created from the Vendia Share CLI (share uni invite) or through the Vendia Share web application.

Once the initial Uni is created, it will be in a RUNNING state. Each participant can be added when the time is appropriate. There is no need for other parties to specify a schema or initial state. New nodes will have their data populated from the existing Uni.

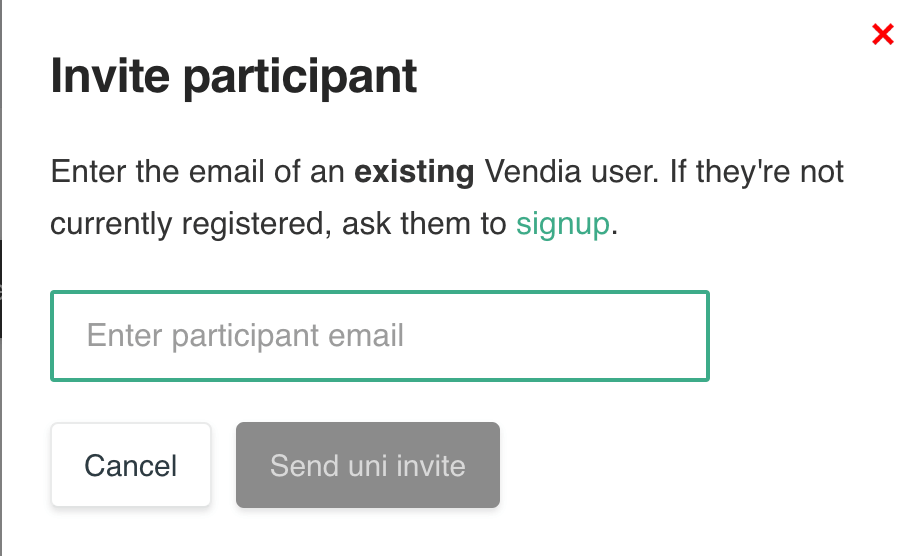

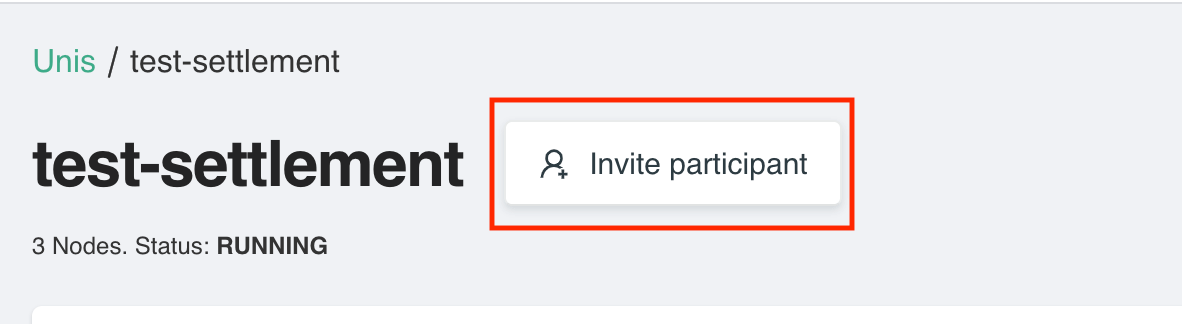

Uni Invitation - Web AppUni Invitation - Specify Participant

When the new participant accepts the invitation and joins the Uni, the Uni will pause write operations as initial data is populated in the new node. Once the new node is up and running and data is in sync, the Uni will automatically return to the RUNNING state. Pending writes will be applied. Read requests to a Uni node are unaffected and will continue to work as expected while the new node is added to the Uni.

NOTE: Vendia Share users inviting new nodes to a Uni must have sufficient privileges. Vendia Share users accepting an invitation must also have sufficient privileges to join a Uni. Please review Vendia's Role-based Access Control documentation for more detail.

ANOTHER NOTE: Though many invitations can be out to new Uni participants, only one node can be added at a time.
